MIOConsole:
|
Analog I/O Control |
80-bit WIDE Mixer |
|
Mix/Output Routing |
|
+DSP Control Surface |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

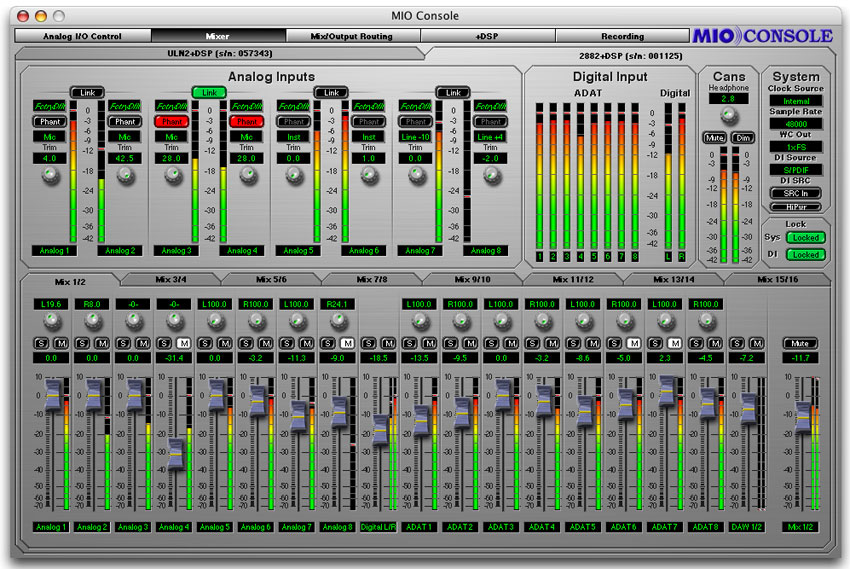

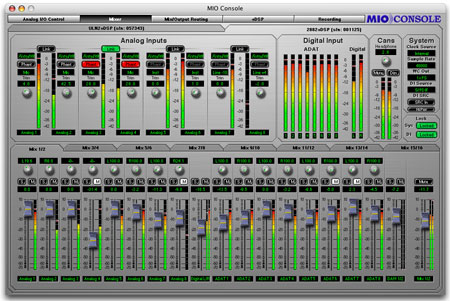

The Heart of Mobile I/O Control
MIOConsole consolidates all of the controls
for the Mobile I/O hardware into one easy to use window.
MIOConsole contains a powerful and versatile hardware engine,
an 80-bit multi-bus mixer that supports near-zero latency
mixing and routing of all inputs and outputs with scaleable
expansion, console style mixing, and DSP processing. MIOConsole
software automatically recognizes additional I/O boxes and
provides instant and total recall of all settings, including
+DSP plug-ins, micpre and input settings, complex and extensive
routing, and multibus mixer levels - regardless of the order
in which the boxes are connected.
MIOConsole is the nerve center
of your Mobile I/O. Functioning as a standalone application,
MIOConsole provides full control of every aspect of Mobile
I/O. The console software allows you to rapidly and easily
adjust all of the input and output channel parameters, system
sample rate, digital I/O source, and system clock source.
It also allows you to assign any Mobile I/O input or DAW
output to the integrated 80-bit, fully interpolated, multi-bus,
near-zero latency hardware mixer.
|

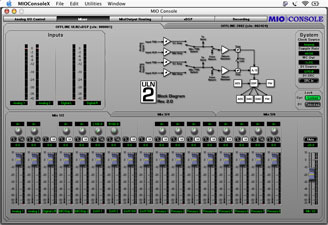

MIOConsole Mixer |
|
|
 |
MIOConsole's powerful mixer
supports both mono and stereo busses, with solo
and mute functions for all input and master channels.
The mixer bus outputs are routeable to any of the
hardware outputs, allowing you to create multiple
simultaneous mixes for send/return busses and multiple
live main and monitor mixes. Various applications
include foldback support for multiple performers,
separate monitor feeds for studio, tape, and control
room, and separate mixes for front of house, archive
recording, and monitors for live shows.
|
|
|
MIOConsole Mix/Ouput Routing |
|
 |
MIOConsole
also contains a patchbay router, which allows you
quickly select the source being fed to any output.
The patchbay provides easy configuration of standalone
operation, mix mults, direct outs and various combinations
thereof to suit the needs of the moment.
|
|
|

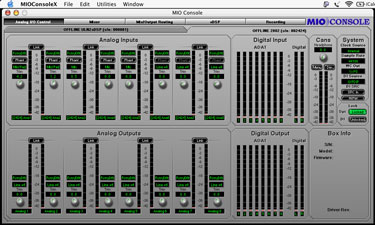

Analog I/O Control |
|
 |
MIOConsole Analog
I/O Control displays System Status, Digital I/O metering,
and provides complete control for the 2882's analog
I/O stage. Select Mic, Line, or Instrument for your
input level, adjust the preamp levels, supply phantom
power for mics, and then save the settings for later,
complete recall. |
|
|
Instant and Total Recall |
|
|
In order to simplify
work flow and optimize the extent of system control,
MIOConsole supports comprehensive preset management
on both a global and individual control level. Global
configuration snapshots allow you to save each and
every aspect of Mobile I/O's configuration for later,
total instant recall. This is useful for preconfiguring
Mobile I/O and bringing back the setup once at the
gig, managing separate location setups, or for saving
comlpex studio routing setups for quick changeover. |
|
|
|
|
|
|
