The Processor That Gives You the Power!

+DSP Plugins
Now Available:

	MIOStrip
	MIOEQ-6
	MIOEQ-12
	MIOComp
	MIOLimit
	MIO M/S Mid-Side Processor

	MIO Summer
	MIO Differencer
	MIO Delay

2882 Features	ULN-2 Features	+DSP Overview

MIOConsole	MIO Drivers	Manuals

Processing On The Metal

MIO+DSP brings Metric Halo's world-renowned assignable DSP signal processing to the Mobile I/O FireWire audio world. Now available on the 2882+DSP and ULN-2+DSP models, MIO+DSP provides a full-featured, flexible signal processing environment that combines world-class signal processing plug-ins with ultra-low latency, incredible mixing, and exceptional converter quality.

Since the MIO+DSP environment is based upon the “Anywhere, Anytime” portable Mobile I/O hardware, you can apply MIO+DSP power whenever and wherever you want. The ultra-low latency of the signal processing environment allows you to pile on processing during tracking – even for foldback monitors, without incurring any delay to throw off the performance.

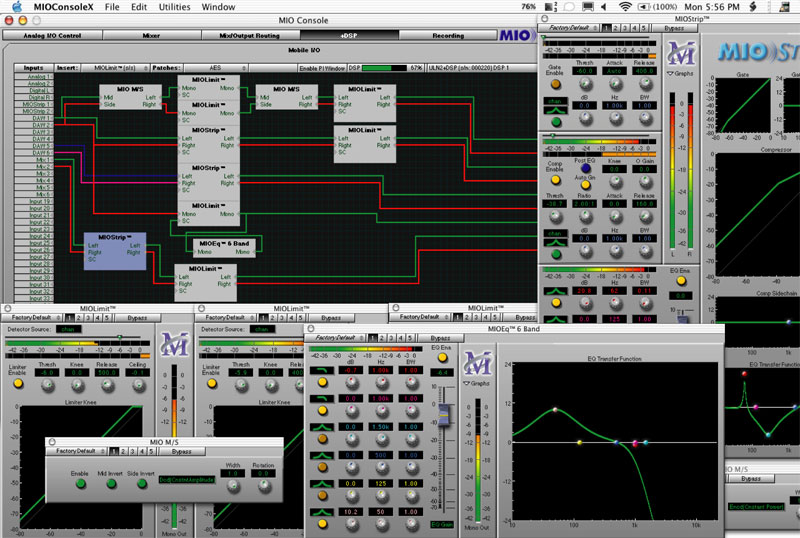

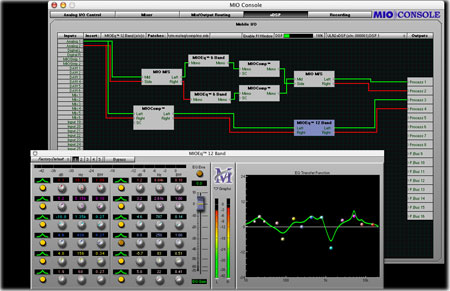

The heart of MIO+DSP is the +DSP Graph. This new environment provides instant access to all of the available signal processing plug-ins and processors. The Graph gives you free-form access to all the I/O and processors in your system, and allows you to configure signal routing with complete freedom and flexibility. Signals may be routed between processing chains, fed-back, and connected in ways that are simply impossible in other systems. All signals within the graph are automatically delay compensated, so no matter how complex your routing becomes, everything remains phase-aligned. This flexibility allows you to create unique and sophisticated signal processors from basic building blocks and more sophisticated algorithms.

MIO+DSP includes a bundle of exceptional signal processing plug-ins, so you can get right to work. The bundled plug-ins are focused on production audio, and include MIOComp, MIOEQ-6, MIOEQ-12, MIOLimit, MIO Mid/Side Processor, and of course, MIOStrip.

The processing algorithms in these plug-ins are completely new versions of Metric Halo’s much-loved signal processors. These new plugs take the best of the Metric Halo pedigree, incorporate carefully made changes based upon feedback from thousands of users to culminate in a set of exceptional sounding and easy-to-use signal processors. Since they are part of MIO+DSP, they are always available on your MIO – Anywhere, Anytime.

+DSP Implementation Guide

	Key Features
	• Ultra-low signal processing latency • Automatic delay compensation • Processing on the metal – DSP directly connected to the converters and I/O • Integrated mixing • High-resolution signal processing engine • Dynamic loading and instantiation of plug-ins • Extremely flexible signal routing • Sophisticated patch and preset management • Total recall with MIO Console • Mac OS 9 and OS X • Available on the Mobile I/O 2882+DSP • Available on the Mobile I/O ULN-2+DSP • Exceptional processing, exceptional sound • Completely portable, Highly personal
